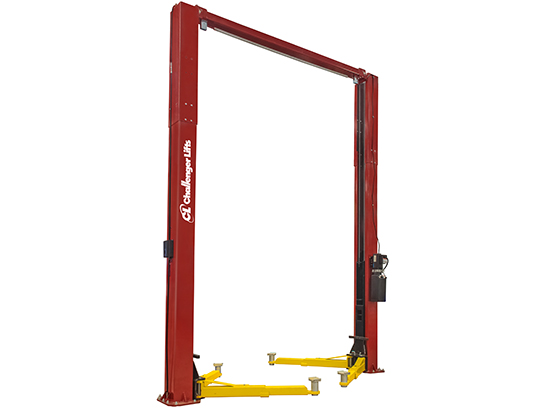

Challenger Lifts' CL10AV3-EV model series upgrade is designed to tackle industry Electric Vehicle demands head-on, featuring Versymmetric® technology for efficient vehicle servicing. With 3-stage front and rear arms and directSPOT™ design, it offers precise first-try spotting, boosting productivity. Available in various configurations.

CL10AV3 series with options for speed and efficiency are tailored to meet specific service needs. The lift's adjustable features and a wide array of accessories make it the ultimate choice for forward-thinking shops. Upgrade to the CL10AV3 for reliability, safety, and unparalleled performance, backed by ALI® Certification.

This CL10AV3-2-EV model includes an optional 2' height extension.

EV Series of CL10AV3 lifts include: Stack Adaptor Kit (Part No. 10315), Document Caddy (Part No. 10320) and Pendant Holder (Part No. 10321), includes 10313 (2)- 6" adapters, (2) 10316 adapter caddies, set of EVFPK (164 in. height).

The new upgraded CL10AV3 series lifts provide three width configurations.

• Narrow: Space Constraints or Express Pads configuration.
• Universal: Cars, SUVs, Trucks, Most Electric Vehicles.
• Wide: Optimal for Cars, EVs and Luxury vehicles.



Features

• 10,000 lbs. Lift Capacity: Designed to handle a diverse range of vehicles, including heavy-duty applications, with an optional 2' height extension for enhanced versatility.
• Versymmetric® offset front arms provide directSPOT™ to vehicle lift points and safely lifts both symmetrically and asymmetrically within the same service bay maximizing service capabilities and revenue potential.
• .Oversized Pulley and Durable Cable: Features a 5 in. diameter pulley and a heavy-duty 5/16 in. cable that minimize stress on the equalization system, prolonging cable life and ensuring reliable operation.
• .Elongated Carriage Design: The 48 in. elongated carriage increases lift life and stability during operations.
• .Adjustable Width Settings: Offers three different width adjustment configurations ranging from 11′ 6.5″ to 12′ 6.5″ to accommodate various vehicle sizes.
• .Ceiling Height Compatibility: The standard model is compatible with a 12-foot ceiling, with optional 2-foot or 3-foot extensions available for added height flexibility.
• Available Colors: Red, Blue, and Black.
• Standard Voltage: 208-230V, Single Phase.
• (Optional 3 Phase -50/60 - 230, 208 and 460).
